Double Sided Rotary Tablet Press Machines

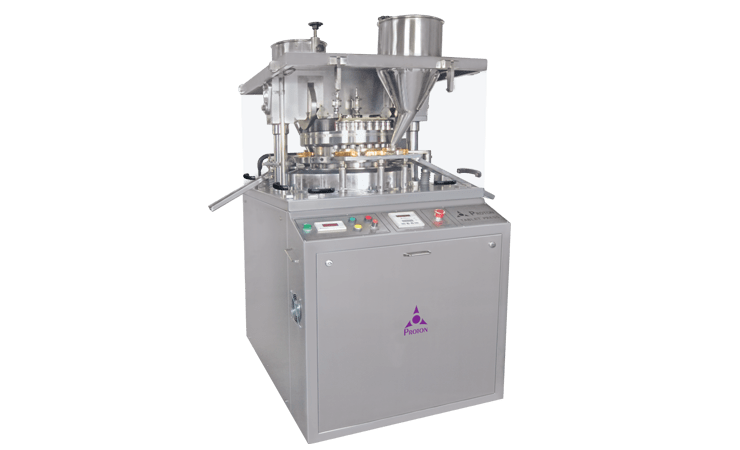

Pharma Double Sided Rotary Tablet Press Machine
| Model | Proton-27D | Proton-35B | Proton-45BB |
|---|---|---|---|
| Number of Station | 27 Stn. | 35 Stn. | 45 Stn. |
| Type of Tooling | “D” | “B” | “BB” |
| Output-Tablets /Hr. | 54,00 – 1,29,000 | 70,000 – 1,68,000 | 90,000 – 2,16,000 |
| Max. Operating Pressure | 10 Tons | 6.5 Tons | 6.5 Tons |
| Max. Tablet Diameter | 25 mm | 16 mm | 11 mm |
| Max. Depth of Fill | 20 mm | 17.5 mm | 17.5 mm |
| Upper Punch Penetration | 1.5 – 8 mm | 1.5 – 8 mm | 1.5 – 8 mm |
| Turret RPM | 40 RPM | 40 RPM | 40 RPM |
| Main Electric Motor | 5 HP, 3 Phase, 1440 RPM, 415 V., 50 Hz | ||
| Overall Dimensions (mm) | 1790 mm x 1000 mm x 1040 mm | ||
| Net Weight (Kgs.) | 1400 | ||
*Specifications are subjected to change without notice.
Moreover, the machine can produce tablets with complex shapes and designs, making it a versatile tool for pharmaceutical manufacturers. However, it requires skilled operators to ensure the tablets produced meet the quality standards and avoid issues such as tablet sticking or capping.
Salient Features: Double Sided Rotary Tablet Press Machine
- Square GMP model
- Machine is having heavy duty CI body & CI middle plate
- Easy and more through cleaning
- Excellent and operator friendly material feeding system
- Lower guards of polished stainless steel
- Upper guards of transparent acrylic material
- Digital tablet cum RPM counter
- Turret of special grade SG casting
- Aluminum turret guards
- Higher turret speed upto 40 RPM
- Phosphorous bronze bush provided inside the turret hole
- Imported needle roller beaning provided at the bottom of turret
- Cam tracks & pressure rolls made out of alloy steel
- Worm is made of phosphorous bronze material
- Upper punch penetration system
- Effective dust extraction nozzles
- Interlock to all guards
- Variable speed pulley
- One shot lubrication system
- Double sided lifting cams
- Anti vibration mounts
- Overload pressure release system
- Reverse direction motion protection is provided to avoid major accident
- Available with intermittent auto lubrication pump(optional)
- Available with force feeding attachment (optional)
- Also available with SS 316 middle plate in turret
- Also available with electroless nickd plating turret
- Machine can be equipped to compress two-layered tables (optional)
- Also available with AC variable drive for main motor (optional)
- Also available with front control All parameters can be set outside of machine
Frequently Asked Questions
A: A tablet press machine, also known as a tablet compression machine, is used to compress powder into tablets of uniform size, shape, and weight, commonly used in pharmaceutical, nutraceutical, and other industries.
A: Regular maintenance includes cleaning the machine after each use, lubricating moving parts, inspecting dies and punches for wear, and conducting periodic calibration to ensure accurate tablet production.
A: There are two main types of tablet press machines: single-station (single punch) and multi-station (rotary) presses. Single-station presses are used for small-scale production, while rotary presses are designed for high-volume manufacturing.
A: Consider factors such as production capacity, tablet size and shape requirements, material properties, ease of operation, and budget. Consulting with a manufacturer or supplier can also help you select the most suitable machine for your specific application.
Yes, we offer comprehensive training programs for operators and maintenance staff, as well as ongoing technical support to help you maximize your machine’s efficiency and productivity.
Absolutely. We can customize our tablet press machines to meet specific requirements, including unique tablet shapes, sizes, and formulations. Contact us to discuss your customization needs.
